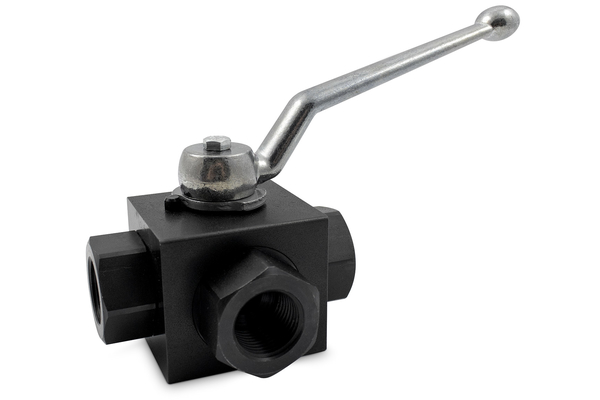

KHU3-G114I-25-T
Directional ball valve

Product info

• Technical data

  DN:	32/25
  working pressure [bar]:	400
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 1 1/4

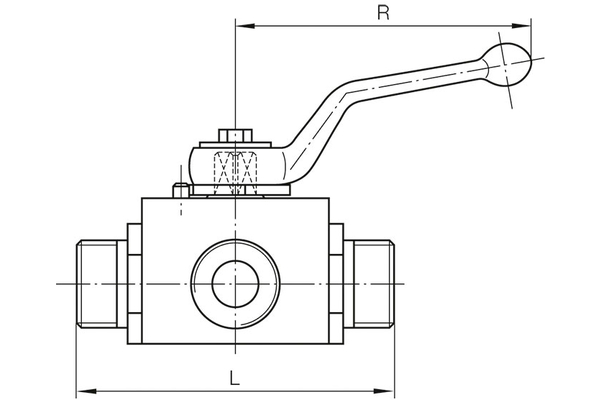

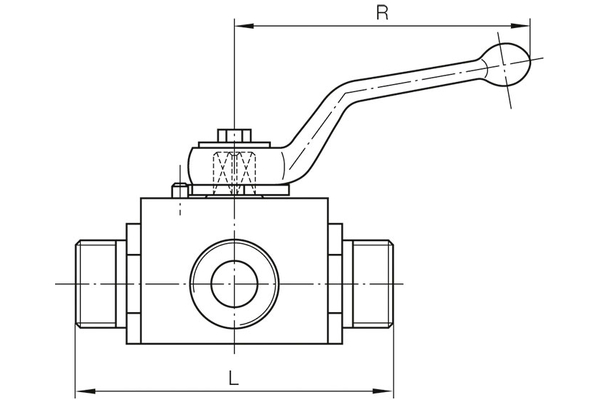

  L [mm]:	134
  B [mm]:	65
  SW [mm]:	50
  SW1 [mm]:	14
  H1 [mm]:	31,0
  H [mm]:	65

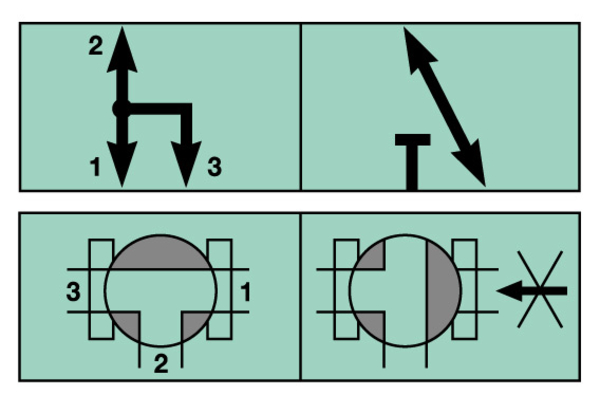

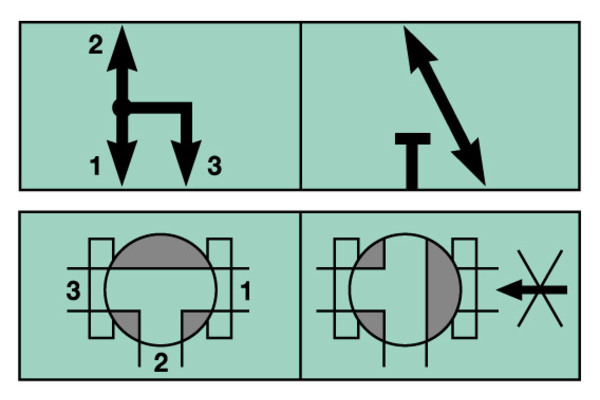

  Bore hole:	T
  GL [mm]:	20
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
