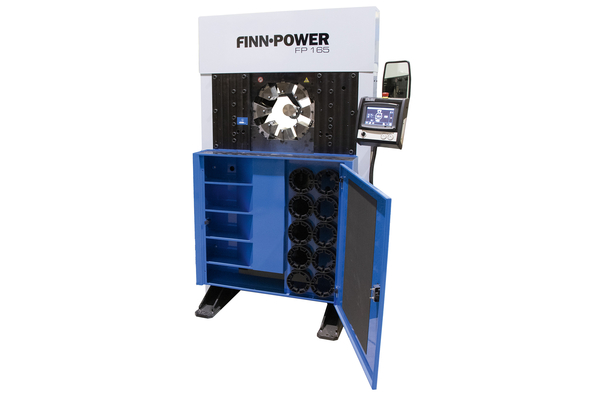

FP165ICC
Electro-hydraulic industrial crimper, 500t, crimping range up to 202mm

Product info

• Technical data

  Weight [kg]:	2480
  power [kW]:	6,5
  Components:	German operating instructions, spare parts list, intermediate die set for die set ype P32, die set quick change tool for die set ype P32, integrated die set cabinet with 10 sleeves "P32", pressure crimping ICC1, step crimping ICC2, foot switch, electric back stop device, mirror, lubricant
  crimping range [mm]:	10 – 202
  crimping force [t]:	500
  Note:	Other optional special accessories, such as autogreaser, oil cooler, barcode scanner, etc., are available for this crimper on request. This type of crimper is also available in a more cost-effective version with a lower crimping force (350 tonnes), with the same crimping range, part-no.: FP160ICC
  Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
  WxDxH [mm]:	1060x860x1825
  control system:	Intelligent crimping Control ICC (7“ touch screen)
  frequency [Hz]:	50
  max. hose size [DN]:	6-spiral layers hydraulic hoses up to DN51 / 2", industrial hose assemblies up to DN150 / 6"
  max. opening crimping head [mm]:	+125
  number of phases:	3
  tank capacity [ltr]:	ca. 135
  voltage [V]:	400
  weight Aggregat (without oil) [kg]:	220
