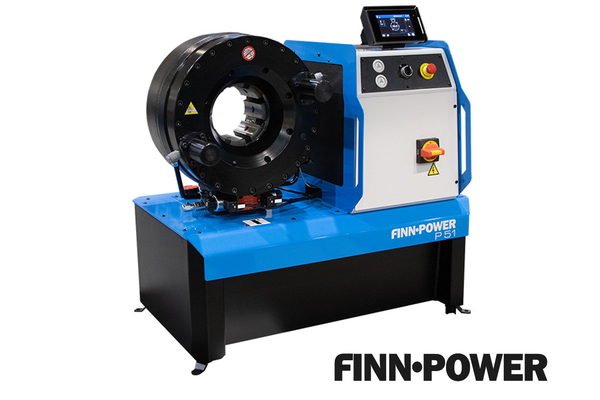

P51SCC - Finn-Power Electro-hydraulic workshop crimper, 280t, crimping range 6,8-124mm

Product info
Benefit

Product info

Weight [kg]:	298
power [kW]:	4
Components:	German operating instructions, spare parts list, tool for exchanging the single die set segments, lubricant, intermediate die set for die set ype P32
crimping range [mm]:	6,8 – 124
crimping force [t]:	280
Note:	Weiteres optionales Sonder-Zubehör, wie Spiegel, mechanischer Tiefenanschlag, elektrischer Tiefenanschlag, sind für diese Presse auf Anfrage erhältlich.
Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
WxDxH [mm]:	865x553x871
control system:	Smart crimping Control SCC (5“ touch screen)
frequency [Hz]:	50
max. hose size [DN]:	4-spiral layers hydraulic hoses up to DN51 / 2", 6-spiral layers hydraulic hoses up to DN38 / 1.1/2"
max. opening crimping head [mm]:	+46
number of phases:	3
tank capacity [ltr]:	ca. 80
voltage [V]:	400

Benefit

Highest crimping force and large crimping range
Space-saving, electrically-operated table model
Cost-effective crimping by using adapter jaws
Simple positioning of hose line, no axial jaw movement
Simple jaw change with quick-change system (accessory)
The 5" touch screen control SCC includes standard functions such as crimping delay, die set info, recipe memory, optional step pressing, etc.
Operation with automatic stop or foot switch (accessory)
Increased safety thanks to the press-stop function

Reserve technical changes.

Recommended accessories:
