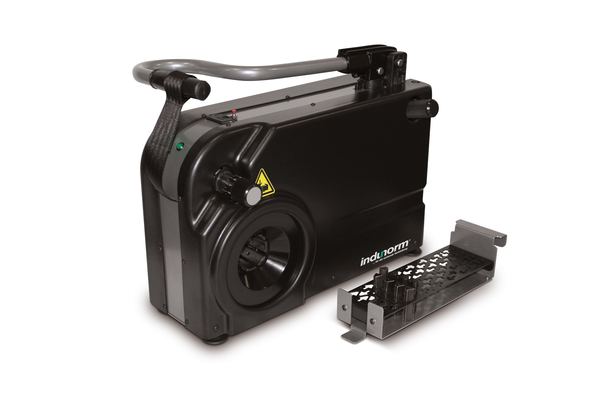

IP16HP
Service crimper with hand pump, 95t, crimping range 6,8-45mm

Product info

• Technical data

  Weight [kg]:	29
  Components:	German operating instructions, spare parts list, lubricant, battery for crimping range signal lamp, drawer for storing crimping jaws, oil filling
  crimping range [mm]:	6,8 – 45
  crimping force [t]:	95,5
  Note:	This crimper type is also available with pneumatic pump (part-no.: IP16AP)
  Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
  WxDxH [mm]:	500x156x330
  control system:	MST/Manual
  max. hose size [DN]:	1-/2-wire braided hydraulic hoses up to DN25 / 1" 4SP hydraulic hoses up to DN19 / 3/4"
  max. opening crimping head [mm]:	+20
  tank capacity [ltr]:	ca. 0,5
  type pump:	hand pump
