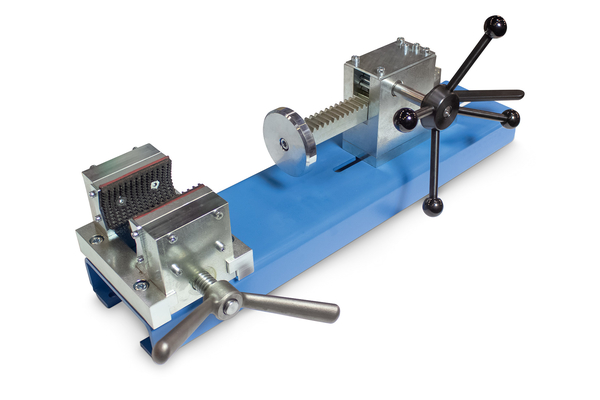

NEV6-50H-3
Nipple insertion device for straight and elbow (optional) fittings

Art. No.: NEV6-50H-3

List number: 37109590

Professional fitting installation is a piece of cake. The NEV6-50H facilitates insertion of the nipple into the hose during production of hose lines.
Special plastic clamping jaws can clamp the hose securely without damaging it.
The nipples are inserted with little effort via a rack and pinion ratio.”

To accessories

Product info
Benefit

Product info

Technical data

Weight [kg]:	20
Components:	German operating instructions, nipple insertion tool for straight fittings up to 2 inch
suitable for hose:	hydraulic hoses DN6-51 / 1/4"-2"

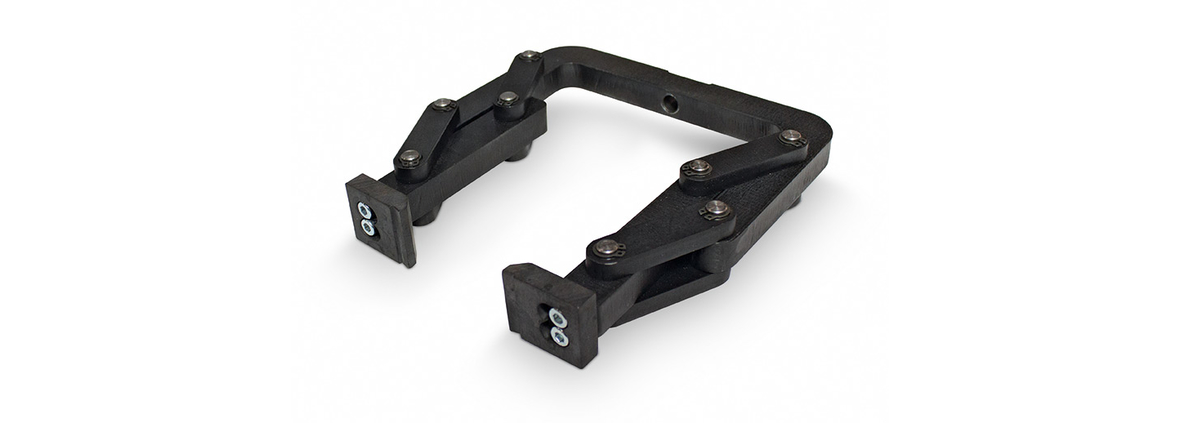

Note:	With the optional NEV-WFB-3 insertion tool, even curved fittings can be inserted easily and safely into the hose. Due to the special joint construction, the insertion arms can be adjusted manually to the shape and size of the curved fitting.
WxDxH [mm]:	730x290x280

Benefit

Easy installation of fittings via rack/pinion ratio
Power-independent by manual operation
Very compact and robust processing
Mounting holes for workbench assembly
Machine delivered ready for operation
Universal nipple insertion tool for elbow fittings available (optional)
Special plastic clamping jaws for secure clamping of hose without damage

Reserve technical changes.
