Art. No.: HAI20SFH9-90S20
List number: 03511350

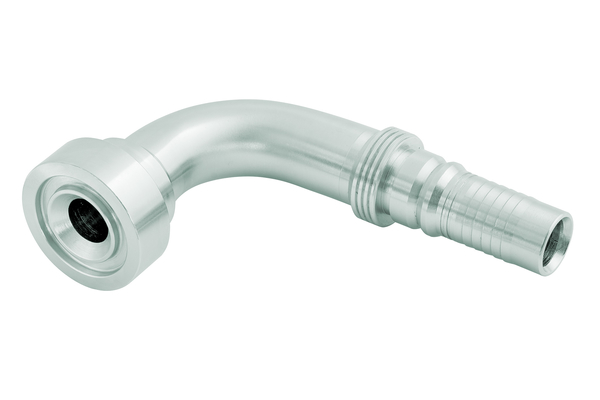

Flange head (CAT) high pressure series

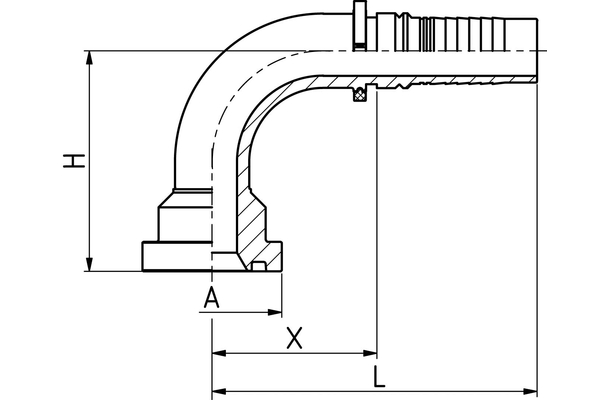

| DN: | 31 |
| Thread + standard: | Flange head (CAT) high pressure series |
| Connection thread A: | 1.1/4" |
| X [mm]: | 89,2 |
| H [mm]: | 93,0 |
| Connection name Indunorm: | SFH 9 - 90° |
| Connection type: | SFS CAT 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
