HV-S12LORF45S12
ORFS 45° with swivel nut LORF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	UN/UNF female thread, flat face
  Connection thread A:	1.3/16"-12 UN

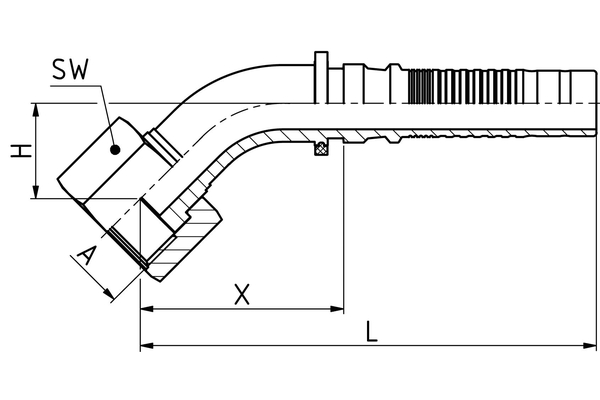

  X [mm]:	81,0
  L1 [mm]:	138,0
  H [mm]:	29,0
  SW1 [mm]:	36
  Type of nut:	Union nut
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with swivel nut
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
