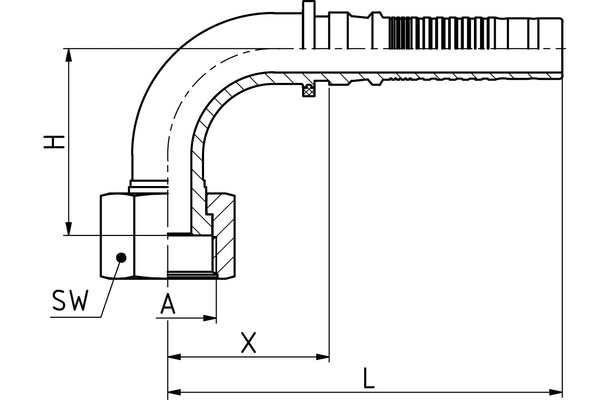

HV-S20LORF90S20
ORFS 90° with swivel nut LORF

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	UN/UNF female thread, flat face
  Connection thread A:	1.11/16"-12 UN
  X [mm]:	157,0
  L1 [mm]:	170,5
  H [mm]:	95,5
  SW1 [mm]:	50
  Type of nut:	Union nut
  Connection name Indunorm:	LORF 90°
  Connection type:	ORFS 90° with swivel nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
