VC06NM05

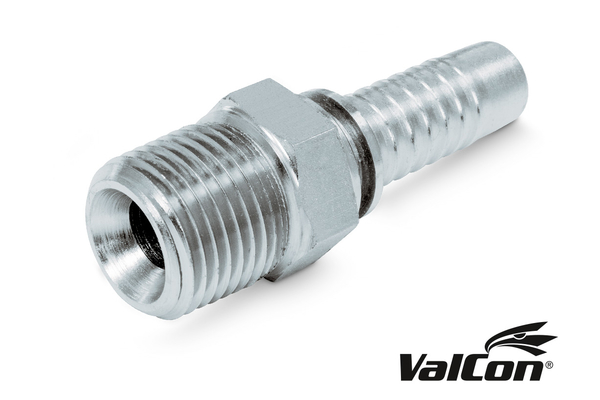

Valcon® swage fitting AGN NM

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	Threaded adapter with conical NPTF thread

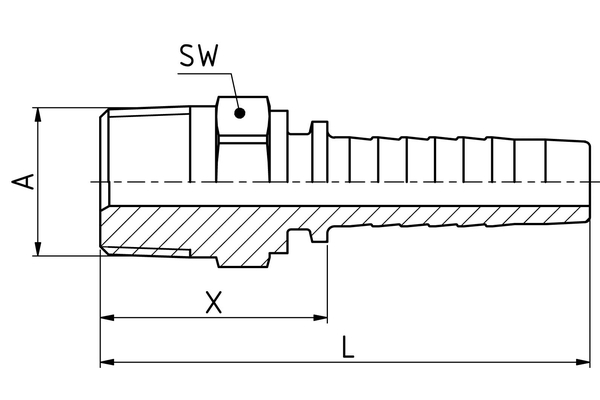

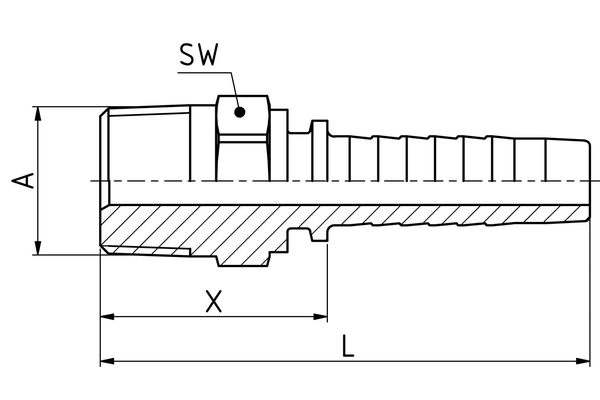

  L1 [mm]:	55,5
  d [mm]:	5,5
  T:	3/8-18
  E [mm]:	19
  C [mm]:	28,0
  L [mm]:	56,5
  Connection name Indunorm:	NM
  Connection type:	AGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
