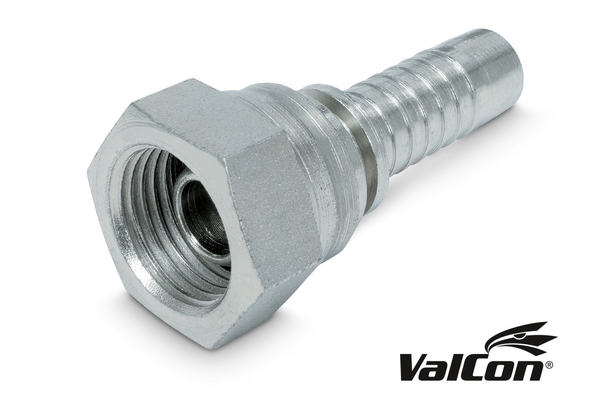

VC10BF10
Valcon® swage fitting DKR BF

Product info

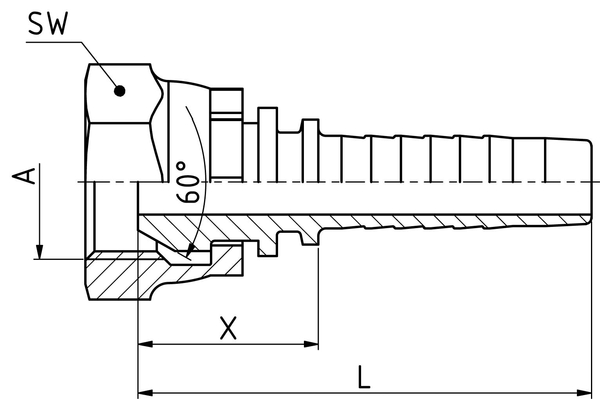

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  d [mm]:	12,0
  T:	5/8-14
  E [mm]:	30
  C [mm]:	22,5
  L [mm]:	56,5
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
