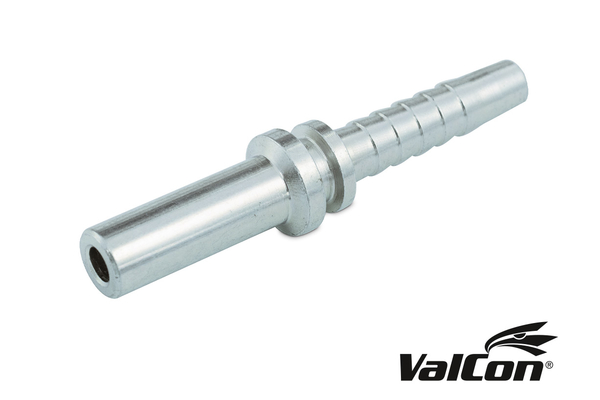

VC12MOSE05
Valcon® swage fitting BEL/BES MOSE

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut
  d [mm]:	5,5
  Type:	L/S
  Pipe E [mm]:	12
  E [mm]:	5.5
  C [mm]:	32,5
  L [mm]:	60,5
  Connection name Indunorm:	MOSE
  Connection type:	BEL/BES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
