SP1PLUS16RH

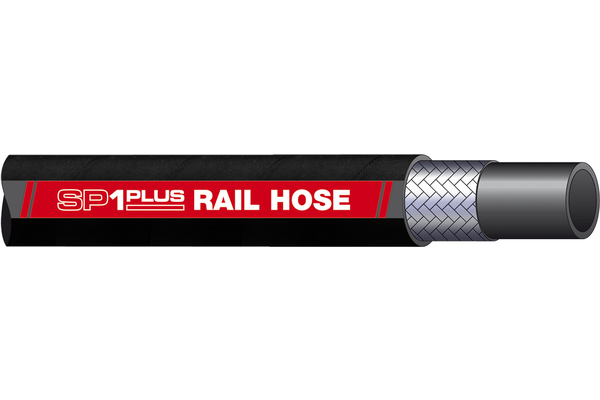

Braided hose SP1plus RAIL HOSE

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Outer Ø [mm]:	22,3
  Inner Ø [mm]:	16,4
  bending radius [mm]:	105
  working pressure [bar]:	150
  burst pressure [bar]:	600
  Safety factor:	4:1

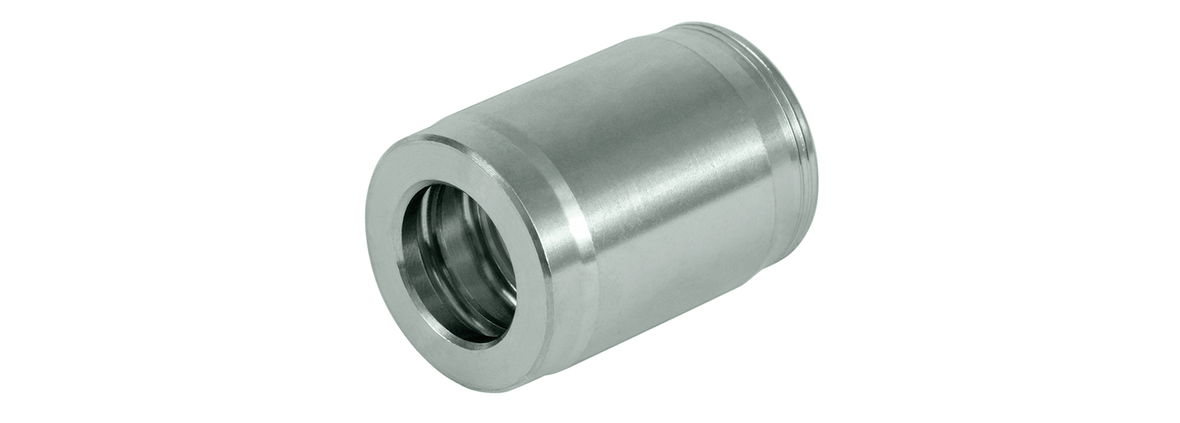

  Standard ferrule:	XV10C
  Standard ferrule stainless steel:	XP-R7-10VA
  Weight [kg]:	0,39
  Static test pressure [bar]:	300
  Outer Ø max. [mm]:	23,0
  Braid diameter [mm]:	20,3
  Approvals:	EN857, EN 45545-2
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic Fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	exceeds EN857-1SC, meets EN45545-2 (HL2-R23)
  Reinforcement:	Steel wire braid, optimized quality with highest tensile strength
  Temperature range [°C]:	-40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	1
