SP1PLUS25RH

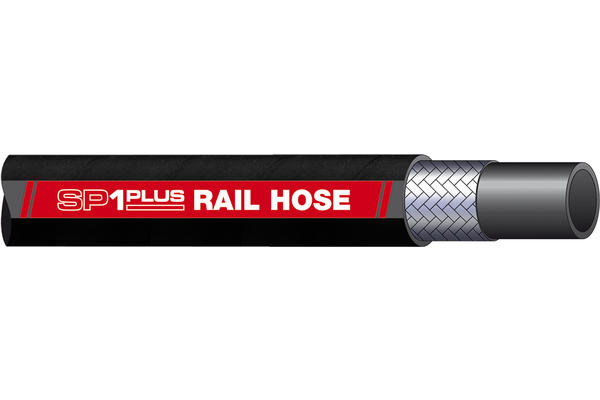

Braided hose SP1plus RAIL HOSE

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Outer Ø [mm]:	33,2
  Inner Ø [mm]:	26,0
  bending radius [mm]:	160
  working pressure [bar]:	110
  burst pressure [bar]:	440
  Safety factor:	4:1
  Standard ferrule:	XV16C
  Standard ferrule stainless steel:	XP-R7-16VA
  Weight [kg]:	0,71
  Static test pressure [bar]:	220
  Outer Ø max. [mm]:	34,9
  Braid diameter [mm]:	31,0
  Approvals:	EN857, EN 45545-2
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic Fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	exceeds EN857-1SC, meets EN45545-2 (HL2-R23)
  Reinforcement:	Steel wire braid, optimized quality with highest tensile strength
  Temperature range [°C]:	-40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	1
