V8-1SN06

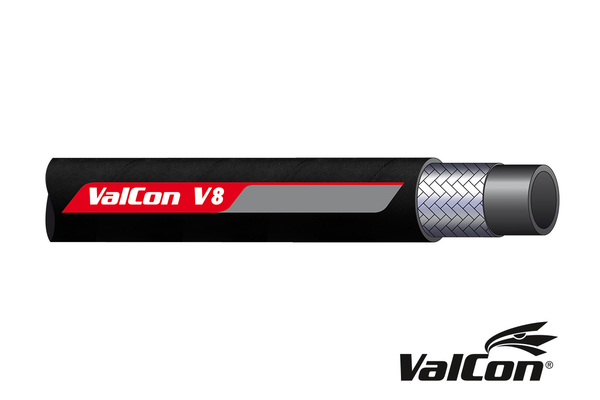

Valcon® Braided hose V8-1SN

Product info

• Technical data

  DN:	06
  Inner Ø [mm]:	6,6
  bending radius [mm]:	100
  working pressure [bar]:	225
  burst pressure [bar]:	900
  Safety factor:	4:1
  Standard ferrule:	VC2-04
  Weight [kg]:	0,190
  Static test pressure [bar]:	450
  Outer Ø max. [mm]:	13,4
  Braid diameter [mm]:	10,9
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 1SN
  Reinforcement:	High tensile steel wire
  Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
  application:	medium pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	1
