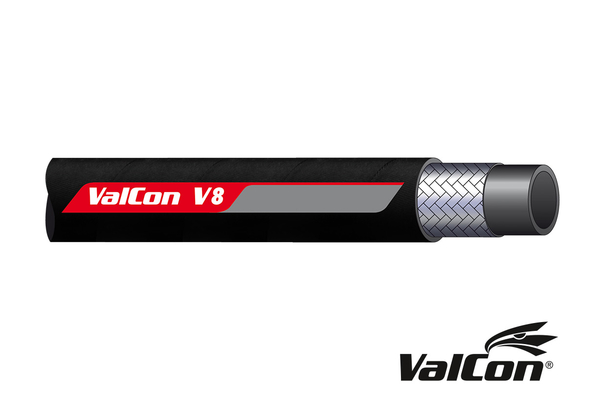

Product info
-
Technical data
DN: 16 Size: 10 Inch: 5/8 bending radius [mm]: 200 working pressure [bar]: 130 burst pressure [bar]: 520 Safety factor: 4:1 Standard ferrule: VC2-10 Static test pressure [bar]: 260 Vacuum [bar]: -0,8 Inner diameter min [mm]: 15,5 Outer Ø max. [mm]: 24,5 Inner diameter max [mm]: 16,7 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 853 - 1SN Reinforcement: High tensile steel wire Temperature range [°C]: -40 °C to + 100 °C, water and water-based media up to + 70 °C application: medium pressure applications max operating temperature [°C]: +100°C number of layers: 1
