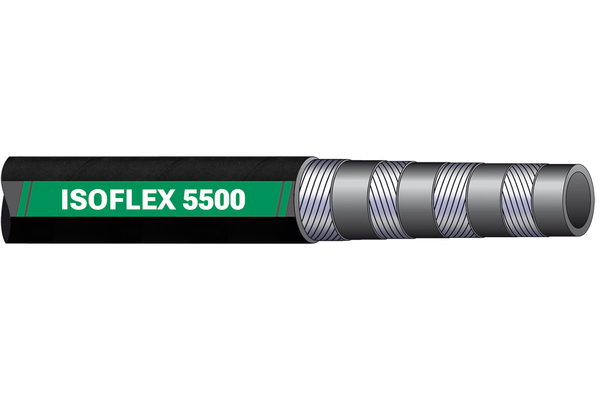

ISOFLEX5500-20
ISOFLEX5500

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Outer Ø [mm]:	30,2
  Inner Ø [mm]:	19,0
  bending radius [mm]:	120
  working pressure [bar]:	380
  burst pressure [bar]:	1520
  Safety factor:	4:1
  Standard ferrule:	HAI12-4
  Weight [kg]:	1,276
  Static test pressure [bar]:	760
  Additional information:	ISO 18752 / CC EXCEEDS SAE 100 R13
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber resistant to abrasion, ozone and hydrocarbons
  Inner tube:	Synthetic rubber, resistant to hydraulic oils, lubricating oils and hydraulic fluids on mineral oil basis. Bio-oil resistance on request.
  MSHA-Approval:	yes
  Media:	Hydraulic oil on mineral oil basis, organic hydraulic oil, oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	ISO 18752
  Reinforcement:	High-tensile steel wire
  Temperature range [°C]:	-40°C + 120°C
  application:	Designed to withstand very demanding conditions. Very high performance in terms of working pressure, pulsation resistance and bending radius.
  max operating temperature [°C]:	+120°C
  number of layers:	4 or 6 layers
