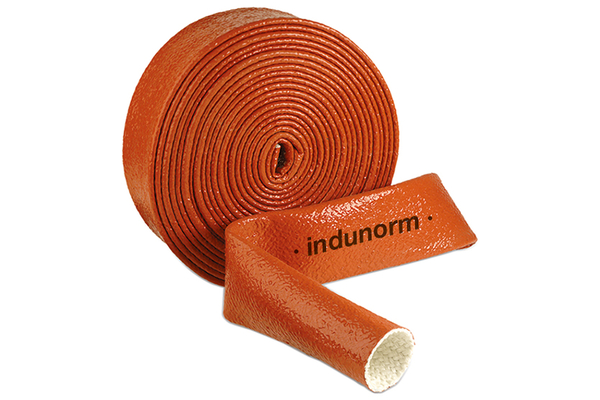

Flame protection hose PRO Approvals: DNV-GL, MSHA, UL 1441, DIN 45545

Similar image

Flame protection hose for protection against external heat e.g. in the following applications: foundries, steel mills, glassworks, etc. Prevents heat losses, protects operators and saves energy.

Approvals: DNV-GL, MSHA, UL 1441, DIN 45545

To accessories

Detail

Art. No.
FSS-PRO-06
%
SALE
FSS-PRO-08
%
SALE
FSS-PRO-10
%
SALE
FSS-PRO-13
%
SALE
FSS-PRO-16
%
SALE
FSS-PRO-19
%
SALE
FSS-PRO-22
%
SALE
FSS-PRO-25
%
SALE
FSS-PRO-29
%
SALE
FSS-PRO-32
%
SALE
FSS-PRO-35
%
SALE
FSS-PRO-38
%
SALE
FSS-PRO-41
%
SALE
FSS-PRO-44
%
SALE
FSS-PRO-51
%
SALE
FSS-PRO-57
%
SALE
FSS-PRO-64
%
SALE
FSS-PRO-70
%
SALE
FSS-PRO-76
%
SALE
FSS-PRO-83
%
SALE
FSS-PRO-89
%
SALE
FSS-PRO-95
%
SALE
FSS-PRO-102
%
SALE
FSS-PRO-114
%
SALE
FSS-PRO-127
%
SALE
Inner Ø [mm]
6
8
10
13
16
19
22
25
29
32
35
38
41
44
51
57
64
70
76
83
89
95
102
114
127
Color
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
red
Technical Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541) SAE AS1072E Compliant MSHA Certified for use in underground mines UL 1441 Certified VW1 Flame Test Certified BS EN 373 Molten Splash Tested BS EN 388 Abrasion Tested BS EN ISO 6940 Flame Resistance Tested BS EN ISO 6530 Oil Resistance Tested BS 2576 Tensile Strength Tested DIN 45545 Low Smoke Toxicity DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity LNE French Rail Certification STM-S-001; Class F0 DIN EN45545-2:2013-08 Rail Certification
Quantity


Product info

  • Specifications
    Material: Special glass fiber mesh
    Temperature range and resistance [°C]: Rated for 500°F (260°C) to -65°F (-54°C) continuous exposure, up to 2000ºF
    (1093ºC) for 15-20 minutes and up to 3000ºF (1650ºC) for 15-30 seconds.
    coating: Temperature resistant special silicone
    coating thickness [mm]: 1

Benefit

Fast slipping of burning materials (e.g., molten metal) is ensured by highly slippery top cover - to a short-term temperature load of 1,650 ° C (foundries, steelworks, shipyards). Provides excellent protection against acids and alkalis (chemical industry, glashers).

Practical tip

Use the Tape FSST to secure the protective hose (FSS-PRO) at both ends for maximum protection and a clean finish.
