SK-VV04BSP06S

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	350
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/4

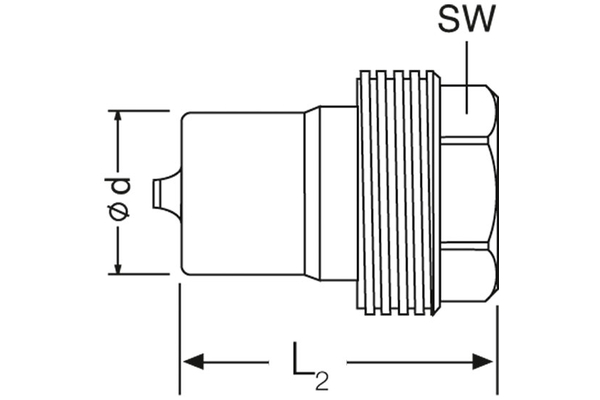

  Outer Ø plug [mm]:	14,1
  Length plug [mm]:	33,0
  Wrench size connection side plug:	19
  burst pressure plug uncoupled [bar]:	1400
  SW1 [mm]:	19
  burst pressure coupled [bar]:	1500
  burst pressure sleeve uncoupled [bar]:	1700
  l/min at ΔP=2 bar:	18
  L1 [mm]:	B+C -10
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series SK-VV male coupling.
  Product title short:	male coupling
