Product info
-
Technical data

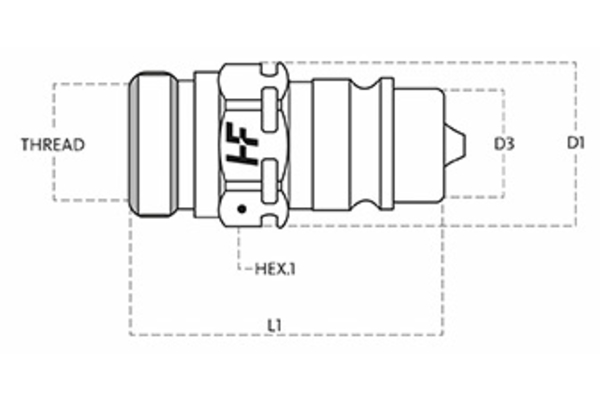

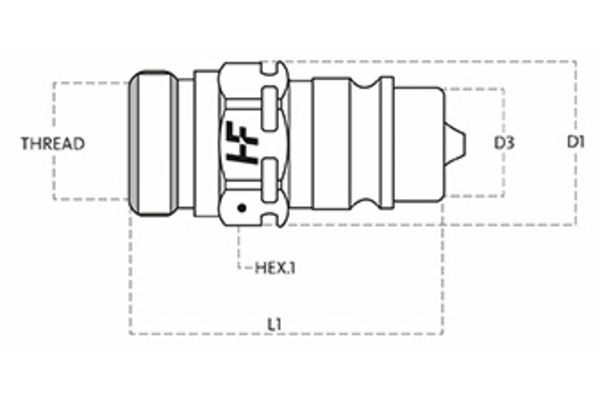

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 3/8 Outer Ø plug [mm]: 20,5 Length plug [mm]: 57 SW [mm]: 27 SW1 [mm]: 27 l/min at ΔP=2 bar: 70
