CNV125/302 M
Faster CNV-Plug

Product info

• Technical data

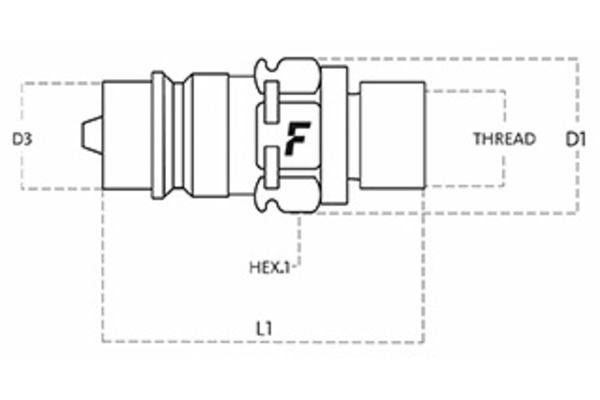

  Size:	4
  DN:	20
  Size:	08
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	Metric buldkhead ISO 8434-1-L
  Thread [GA]:	M30x2
  Pipe Ø R [mm]:	22L
  Outer Ø plug [mm]:	29,0
  Length plug [mm]:	101,2
  SW [mm]:	34
  SW2 [mm]:	41
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	160
  Applications:	Agriculture
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
