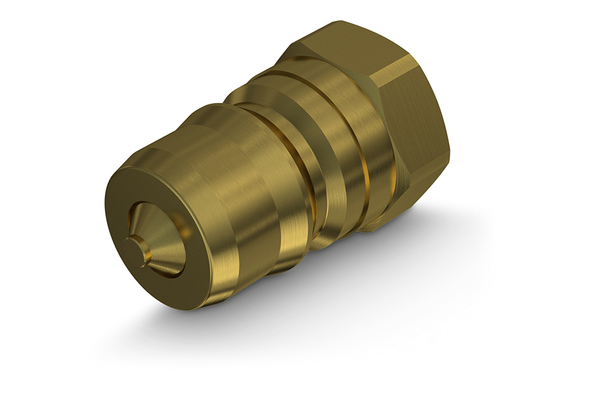

HNV 38 GAS M 5V
Faster HNV-Plug (Brass)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	150
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8

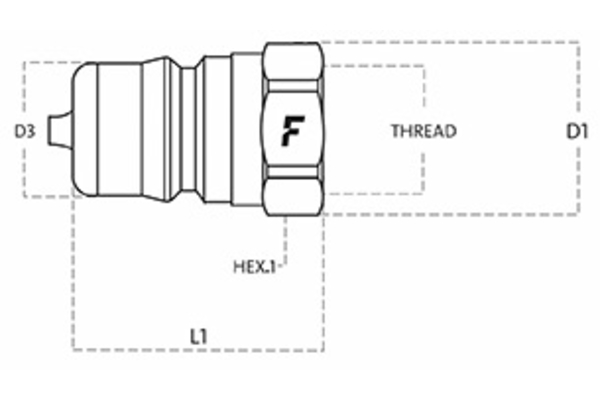

  Outer Ø plug [mm]:	19,0
  Length plug [mm]:	39,0
  SW [mm]:	22
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	25
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Plug
  Material Casing:	Brass
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
