HNV112-114GAS M
Faster HNV-Plug

Product info

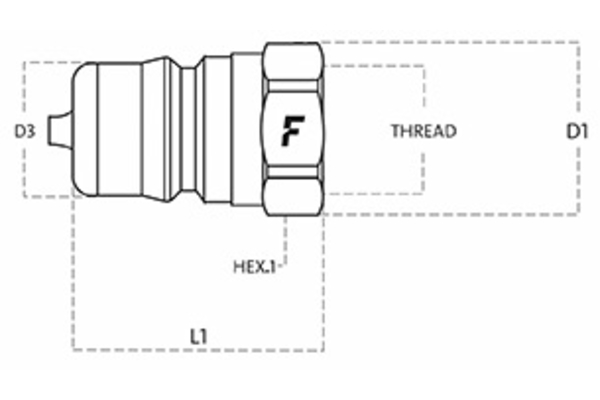

• Technical data

  Size:	8
  DN:	38
  Size:	24
  Inch:	1.1/2
  working pressure [bar]:	140
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1.1/4
  Outer Ø plug [mm]:	44,5
  Length plug [mm]:	126,0
  SW [mm]:	65
  SW1 [mm]:	65
  l/min at ΔP=2 bar:	750
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25 °C to 125 °C
