SK-HK20BSP32M
SK-HK sleeve

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  working pressure [bar]:	300
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1.1/4
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung
  Outer Ø sleeve [mm]:	66,0
  Length sleeve [mm]:	118,0
  Wrench size connection side sleeve:	48
  burst pressure plug uncoupled [bar]:	1200
  SW1 [mm]:	48
  burst pressure coupled [bar]:	1300
  burst pressure sleeve uncoupled [bar]:	1300
  l/min at ΔP=2 bar:	288
  Form of the sealing valve:	poppet
  Material:	steel
  Material support ring:	PTFE

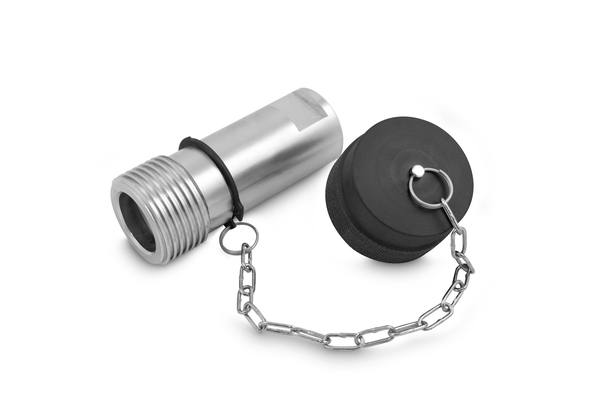

  Product title long:	Series SK-HK female coupling.
  Product title short:	female coupling
