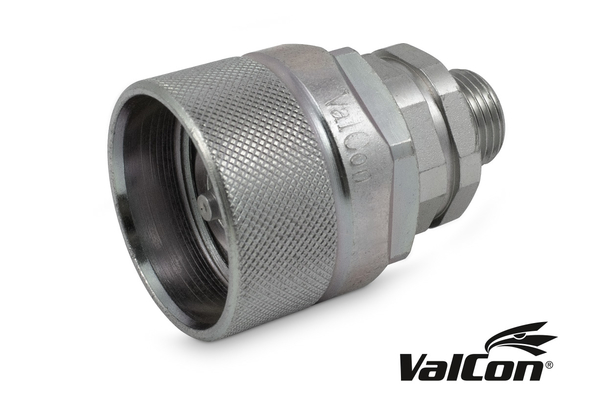

VC-HDS2-IG3/8BSP10S

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	433
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/8
  Pipe Ø R [mm]:	-
  Outer Ø plug [mm]:	34,0
  Connection thread:	M28x2
  Length plug [mm]:	61,2
  SW2 [mm]:	30
  burst pressure coupled [bar]:	1800
  burst pressure sleeve uncoupled [bar]:	1500
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	46
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 male coupling.
  Product title short:	male coupling
