Art. No.: ST-ANV12NPT16M
List number: 22086150

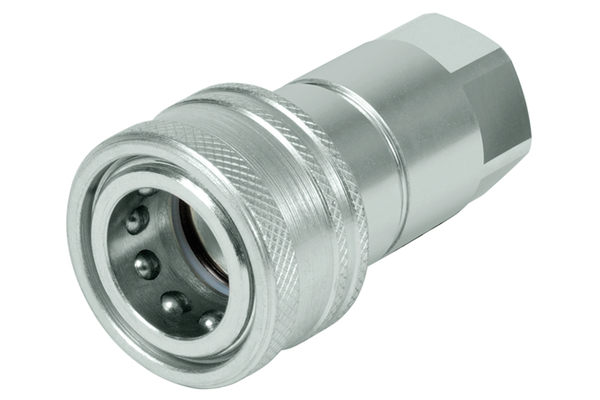

Reference couplings for agricultural applications, but also used extensively in construction and industry. Sealing system with cone valve. Connection not permitted under pressure. Interchangeability according to ISO 7241-A standard.
| Size: | 4 |
| DN: | 20 |
| Size: | 12 |
| Inch: | 3/4 |
| working pressure [bar]: | 250 |
| Thread + standard: | NPT female thread DIN 3852 |
| Thread [GA]: | 3/4 |

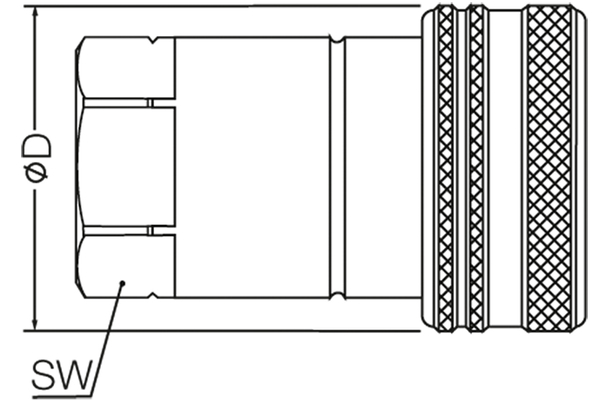

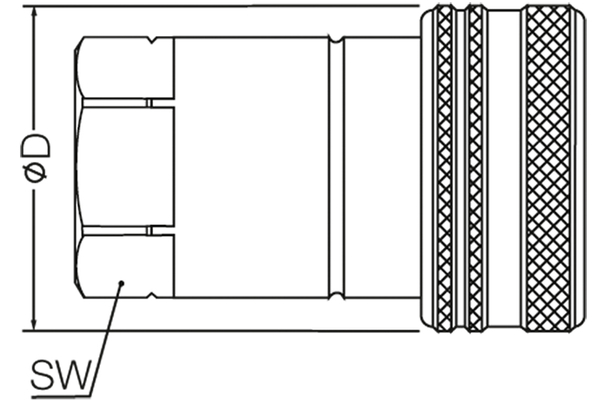

| Outer Ø sleeve [mm]: | 45,0 |
| Length sleeve [mm]: | 84,3 |
| SW [mm]: | 34 |
| Wrench size connection side sleeve: | 34 |
| SW1 [mm]: | 34 |
| l/min at ΔP=2 bar: | 106 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |
| Product title long: | Series ST-ANV female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
