ST-HNV02BSP05S

Product info

• Technical data

  DN:	05
  Size:	02
  Inch:	1/8
  working pressure [bar]:	500
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/8
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung

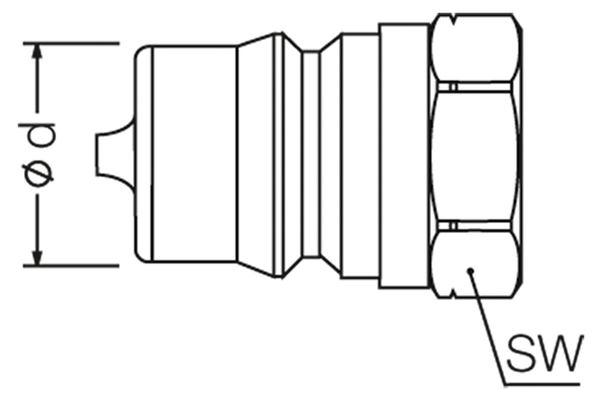

  Outer Ø plug [mm]:	10,9
  Length plug [mm]:	32,0
  SW [mm]:	14
  Wrench size connection side sleeve:	14
  burst pressure plug uncoupled [bar]:	240
  burst pressure coupled [bar]:	270
  burst pressure sleeve uncoupled [bar]:	230
  SW1 [mm]:	14
  l/min at ΔP=2 bar:	3
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE

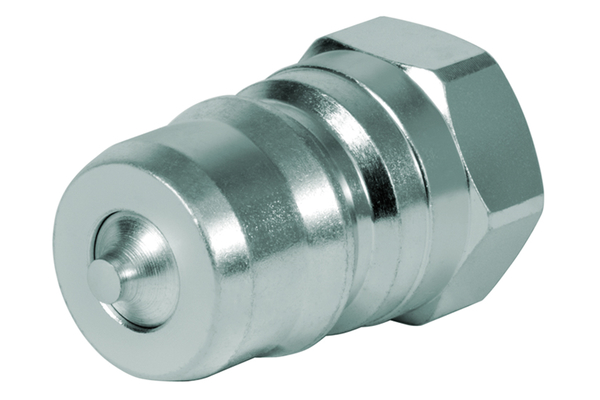

  Product title long:	Series ST-HNV male coupling.
  Product title short:	male coupling
