ST-HNV06BSP10S

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	250
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/8
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung

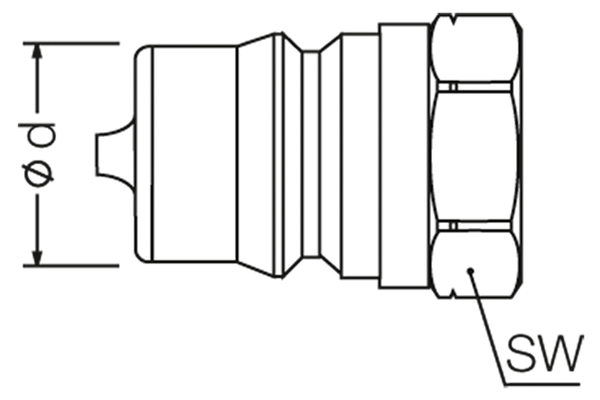

  Outer Ø plug [mm]:	19,1
  Length plug [mm]:	42,5
  SW [mm]:	22
  Wrench size connection side sleeve:	22
  burst pressure plug uncoupled [bar]:	140
  burst pressure coupled [bar]:	130
  burst pressure sleeve uncoupled [bar]:	140
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	23
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE

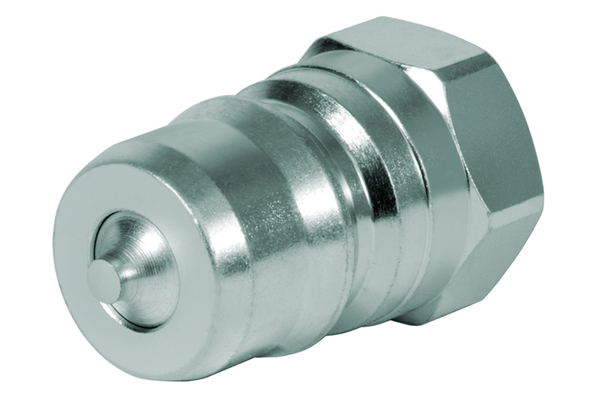

  Product title long:	Series ST-HNV male coupling.
  Product title short:	male coupling
