Product info
-
Technical data

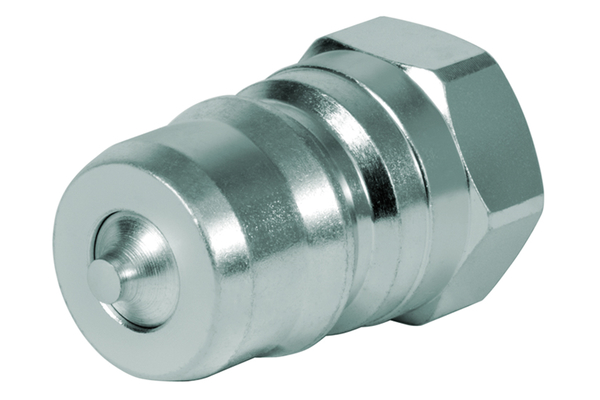

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: NPT 1/2" Thread [GA]: 1/2 Outer Ø plug [mm]: 23,5 Length plug [mm]: 48,0 Wrench size connection side plug: 27 SW [mm]: 27 burst pressure plug uncoupled [bar]: 110 SW2 [mm]: 27 burst pressure coupled [bar]: 110 burst pressure sleeve uncoupled [bar]: 140 l/min at ΔP=2 bar: 45 Form of the sealing valve: poppet Material: C-steel, nitrified Material support ring: PTFE Product title long: Series ST-HNV male coupling. Product title short: male coupling
