ST-HNV12NPT16S

Product info

• Technical data

  Size:	4
  DN:	19
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	NPT 3/4"
  Thread [GA]:	3/4

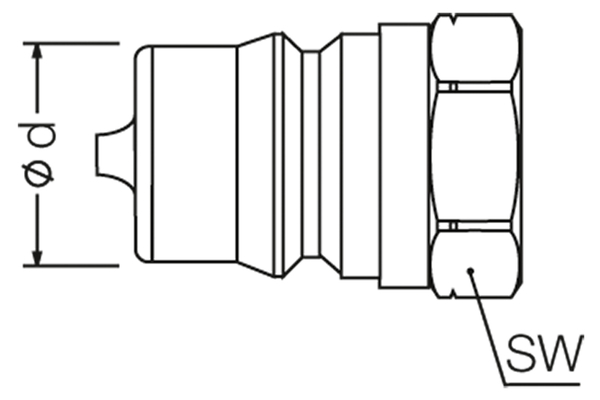

  Outer Ø plug [mm]:	31,4
  Length plug [mm]:	57,0
  Wrench size connection side plug:	34
  SW [mm]:	34
  burst pressure plug uncoupled [bar]:	100
  SW2 [mm]:	34
  burst pressure coupled [bar]:	120
  burst pressure sleeve uncoupled [bar]:	130
  l/min at ΔP=2 bar:	106
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series ST-HNV male coupling.
  Product title short:	male coupling
