Product info
-
Technical data

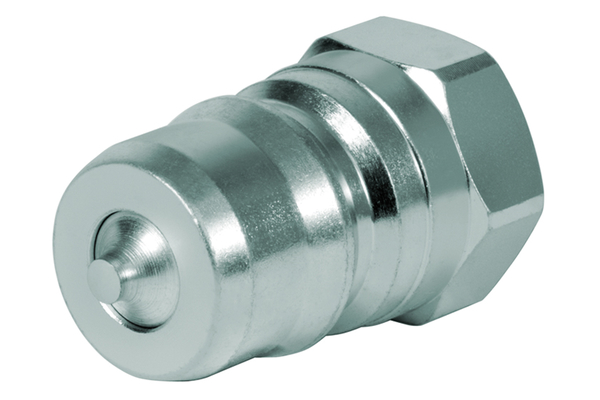

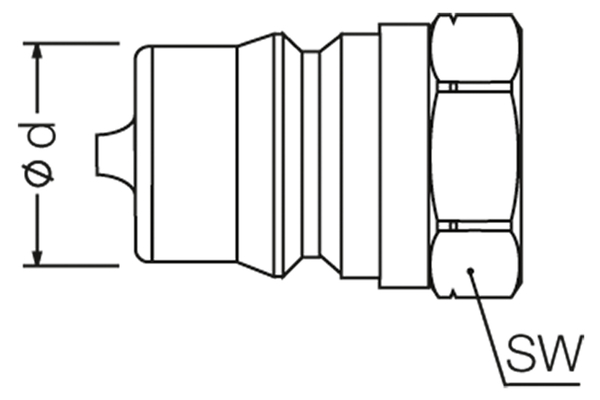

Size: 6 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 250 Thread + standard: NPT 1" Thread [GA]: 1 Outer Ø plug [mm]: 37,8 Length plug [mm]: 65,5 Wrench size connection side plug: 41 SW [mm]: 41 burst pressure plug uncoupled [bar]: 100 SW2 [mm]: 41 burst pressure coupled [bar]: 100 burst pressure sleeve uncoupled [bar]: 110 l/min at ΔP=2 bar: 189 Form of the sealing valve: poppet Material: C-steel, nitrified Material support ring: PTFE Product title long: Series ST-HNV male coupling. Product title short: male coupling
