| Size: | - |
| Size: | 32 |
| Inch: | 2 |
| working pressure [bar]: | 100 |
| Thread + standard: | BSP female DIN 3852 |
| Thread [GA]: | 2 |

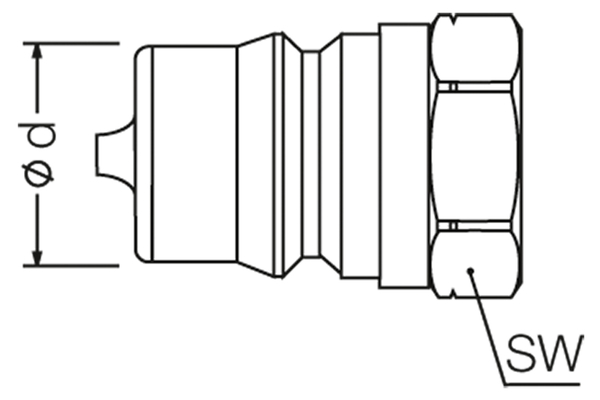

| Outer Ø plug [mm]: | 63,2 |
| Length plug [mm]: | 142,5 |
| SW [mm]: | 90 |
| Wrench size connection side sleeve: | 90 |
| SW1 [mm]: | 90 |
| l/min at ΔP=2 bar: | 757 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |

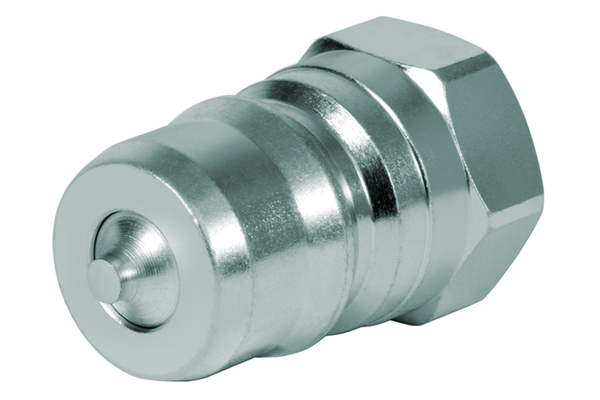

| Product title long: | Series ST-HNV male coupling. |
| Product title short: | male coupling |
Reserve technical changes.
