Art. No.: ST-NV16NPT20M
List number: 22006250

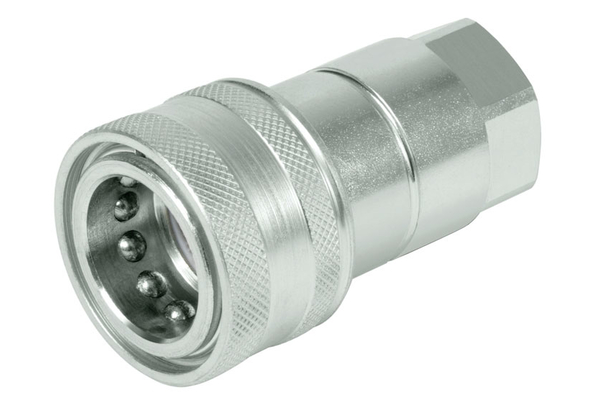

The NV series quick couplings are the best known reference for all general applications. Interchangeability according to Faster profile with the exception of size 12.5, interchangeable according to ISO 7241-A. Sealing system with cone valve.
| Size: | 6 |
| DN: | 25 |
| Size: | 16 |
| Inch: | 1 |
| working pressure [bar]: | 250 |
| Thread + standard: | NPT female thread DIN 3852 |
| Thread [GA]: | 1 |
| Outer Ø sleeve [mm]: | 52,0 |
| Length sleeve [mm]: | 99,0 |
| Wrench size connection side plug: | 41 |
| SW [mm]: | 41 |
| SW1 [mm]: | 41 |
| l/min at ΔP=2 bar: | 189 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |
| Product title long: | Series ST-NV female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
