ST2-PV3-20CES12-08M

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	CE male thread heavy Series, DIN 3861
  Thread [GA]:	M20x1,5
  Pipe Ø R [mm]:	12S
  Outer Ø sleeve [mm]:	31,0
  Length sleeve [mm]:	66.8
  SW [mm]:	22
  burst pressure coupled [bar]:	1300
  GL [mm]:	12
  burst pressure sleeve uncoupled [bar]:	1500
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	23
  Form of the sealing valve:	poppet
  Material:	steel gem. EN10277
  Material support ring:	PTFE

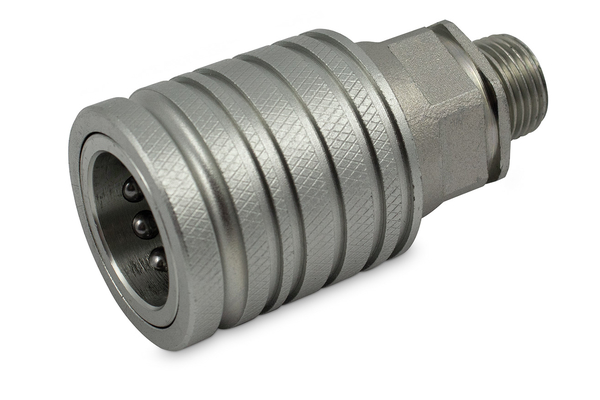

  Product title long:	Series ST2 female coupling.
  Product title short:	female coupling
