ST3-PV1-06BSP12M

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	300
  Thread + standard:	BSP male DIN 3863 (60°)
  Thread [GA]:	3/8
  Outer Ø sleeve [mm]:	38
  Length sleeve [mm]:	73.5
  SW [mm]:	30
  SW2 [mm]:	27
  burst pressure coupled [bar]:	1100
  GL [mm]:	12
  burst pressure sleeve uncoupled [bar]:	1600
  l/min at ΔP=2 bar:	45
  Form of the sealing valve:	poppet
  Material:	steel gem. EN10277
  Material support ring:	PTFE

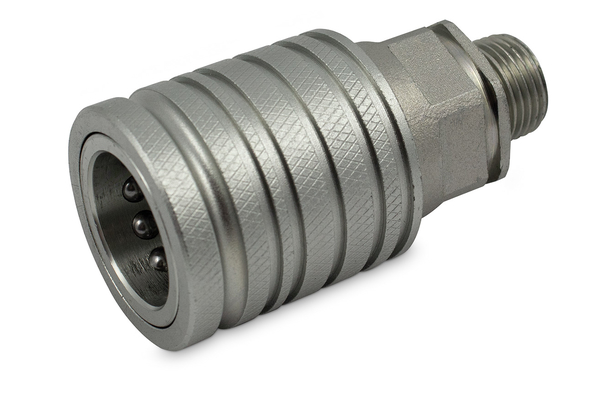

  Product title long:	Series ST3 female coupling.
  Product title short:	female coupling
