ST6-PV12BSP16M

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	225
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/4
  Outer Ø sleeve [mm]:	54,0
  Length sleeve [mm]:	99,5
  SW [mm]:	41
  Wrench size connection side sleeve:	41
  burst pressure coupled [bar]:	1000
  burst pressure sleeve uncoupled [bar]:	1100
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	189
  Material:	C-steel, nitrified
  Material support ring:	PTFE

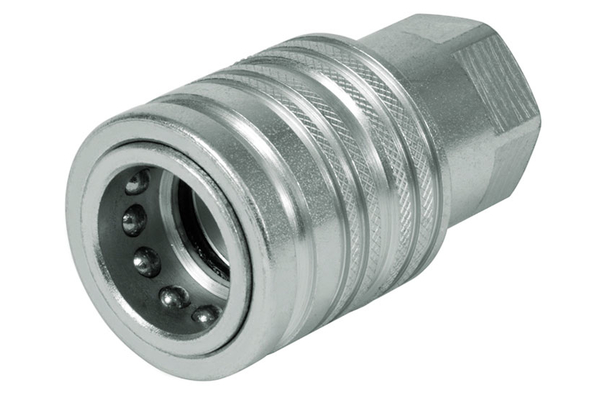

  Product title long:	Series ST6 female coupling.
  Product title short:	female coupling
