VC-ISO-B-IG1-25M
Valcon® Plug-in coupling series VC-ISO-B female

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	210
  Thread + standard:	BSP Innengewinde ISO 1179-1
  Thread [GA]:	1"

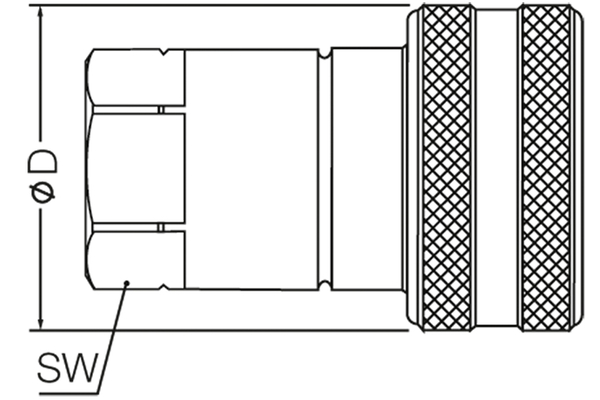

  Outer Ø sleeve [mm]:	63,5
  Length sleeve [mm]:	103,0
  SW [mm]:	41
  SW1 [mm]:	41
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Female
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	400
  Resistance against white rust [h]:	200
  Standard:	ISO 7241-1B
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +120°C
