Product info
-
Specifications

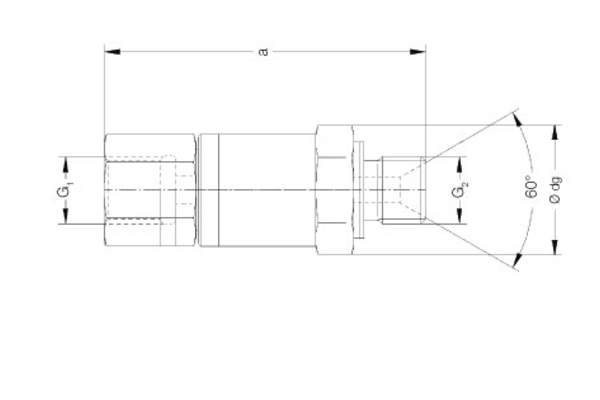

DN: 16 Size: 12 Inch: 3/4 working pressure [bar]: 350 Thread + standard: BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD) Thread [G1]: G 3/4 Thread [G2]: G 3/4 L [mm]: 86,5 Free passage [cm²]: 2,01 Diameter [mm]: 41 Bearing: Ball Bearing Material Casing: machining steel (9SMn28K) Material axle: chemically nickel plated Material sealing: FKM/PTFE Media: oil, water, air Note: We recommend to filter the medium constantly to an impurity of about 15- 20 µm. Please contact us for alternative threads or materials. Rounds per minute [U/min]: Swivel & very slow rotation Surface: nickel-plated Temperature range [°C]: -20 °C / +120 °C (80 °C)
