DGAI06

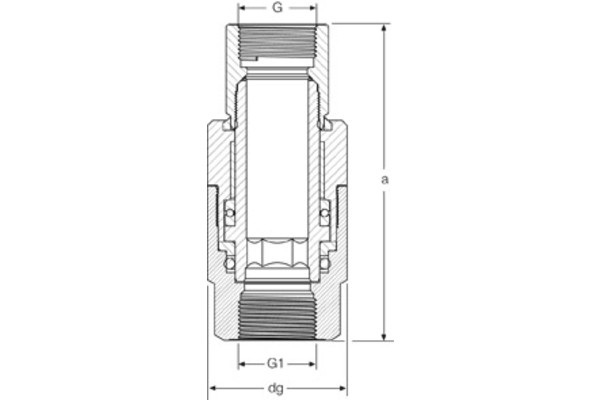

Axial-rotary union DGAI

Product info

• Specifications

  DN:	10
  Size:	6
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	BSP internal thread for threaded studs DIN 3852-2 / BSP internal thread for threaded studs DIN 3852-2
  Thread [G1]:	G 3/8
  Thread [G2]:	G 3/8
  L [mm]:	90
  Free passage [cm²]:	0,5
  Diameter [mm]:	30
  Bearing:	plain bearing
  Material Casing:	machining steel (9SMn28K)
  Material axle:	nickel
  Material sealing:	NBR/PTFE
  Media:	oil
  Note:	We recommend to filter the medium constantly to an impurity of about 15- 20 µm.  Please contact us for alternative threads or materials.
  Rounds per minute [U/min]:	Swivel & very slow rotation
  Surface:	nickel-plated
  Temperature range [°C]:	-30 °C / +95 °C
