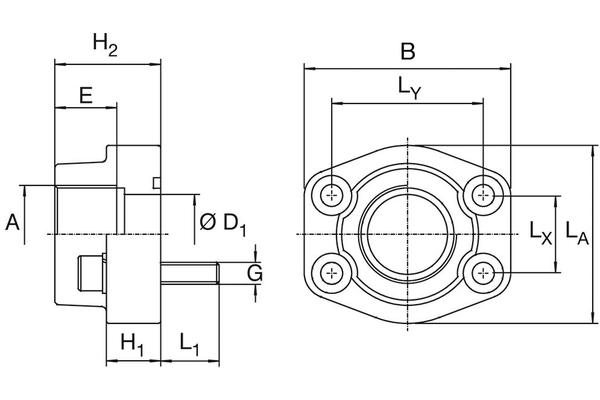

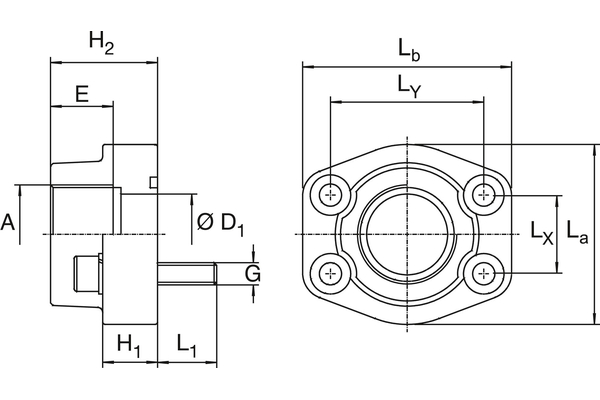

| DN: | 31 |
| Size: | 20 |
| Inch: | 1.1/4 |
| working pressure [bar]: | 420 |
| L1 [mm]: | 22 |
| H1 [mm]: | 27 |
| H2 [mm]: | 44 |
| G: | M14 |
| A: | G 1.1/4" |
| E [mm]: | 22 |
| La [mm]: | 77 |
| Lb: | 94 |
| Lx [mm]: | 31,8 |
| Ly [mm]: | 66,6 |
| Ø D1 [mm]: | 31 |
Reserve technical changes.
