Art. No.: A16SFK6-30CES20-90K
List number: 15702300

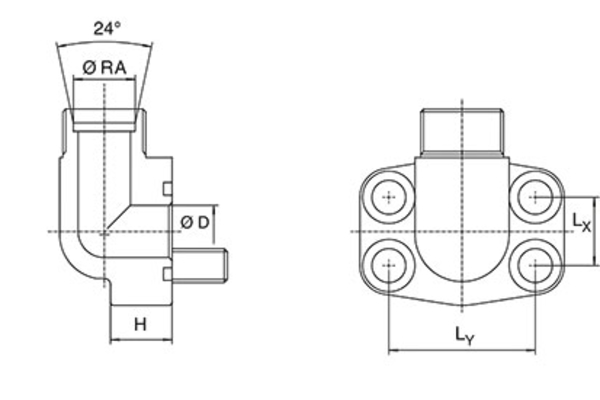

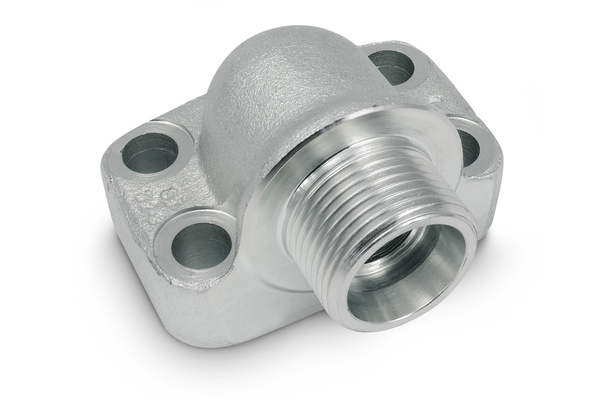

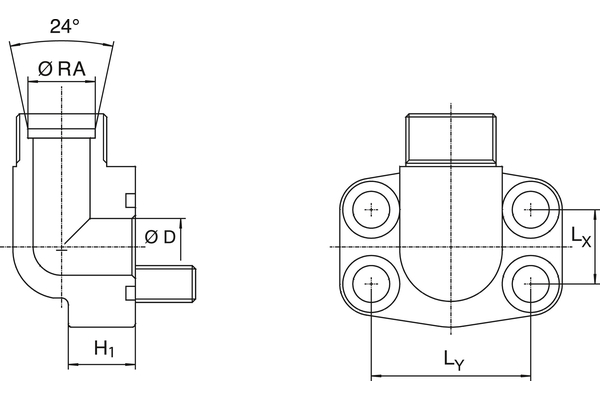

SAE - angel flange 90 degrees with sealing edge 6.000 psi
| DN: | 25 |
| Size: | 16 |
| Inch: | 1 |
| working pressure [bar]: | 420 |
| H1 [mm]: | 24 |
| G: | M12 |
| Description: | flange with sealing edge connection 90° degrees 3000 PSI + 6000 PSI |
| Lx [mm]: | 27,8 |
| Ly [mm]: | 57,2 |
| Material: | steel |
| Ø D1 [mm]: | 16 |
| Ø RA [mm]: | 20S |
Reserve technical changes.
