Art. No.: A20SFK6-36CES25-90K
List number: 15702400

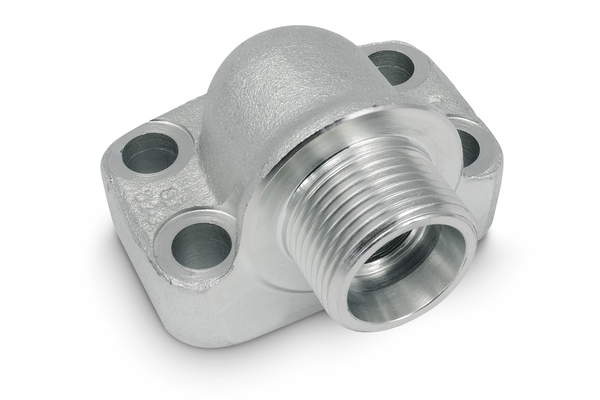

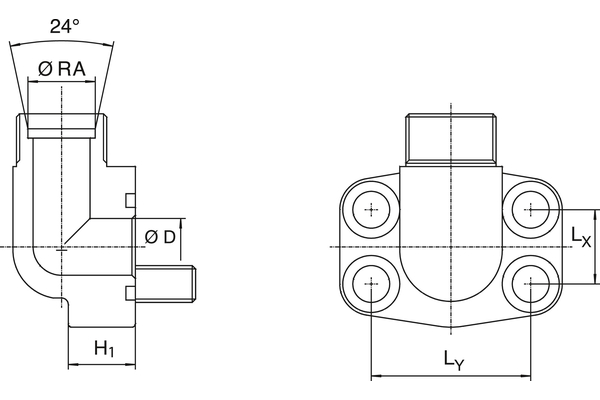

SAE - angel flange 90 degrees with sealing edge 6.000 psi
| DN: | 31 |
| Size: | 20 |
| Inch: | 1.1/4 |
| working pressure [bar]: | 420 |
| H1 [mm]: | 25 |
| G: | M14 |
| Description: | flange with sealing edge connection 90° degrees 3000 PSI + 6000 PSI |
| Lx [mm]: | 31,8 |
| Ly [mm]: | 66,6 |
| Material: | steel |
| Ø D1 [mm]: | 20 |
| Ø RA [mm]: | 25S |
Reserve technical changes.
