Art. No.: A24SFK6-45CES30-90K
List number: 15702500

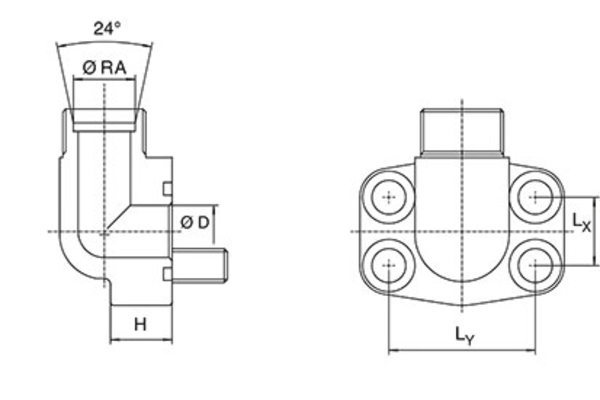

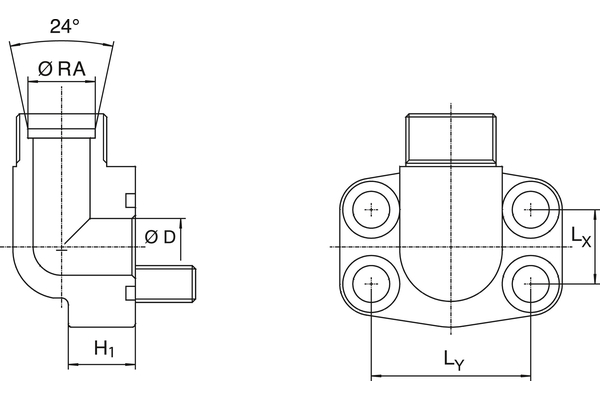

SAE - angel flange 90 degrees with sealing edge 6.000 psi
| DN: | 38 |
| Size: | 24 |
| Inch: | 1.1/2 |
| working pressure [bar]: | 420 |
| H1 [mm]: | 26 |
| G: | M16 |
| Description: | flange with sealing edge connection 90° degrees 3000 PSI + 6000 PSI |
| Lx [mm]: | 36,5 |
| Ly [mm]: | 79,3 |
| Material: | steel |
| Ø D1 [mm]: | 25 |
| Ø RA [mm]: | 30S |
Reserve technical changes.
