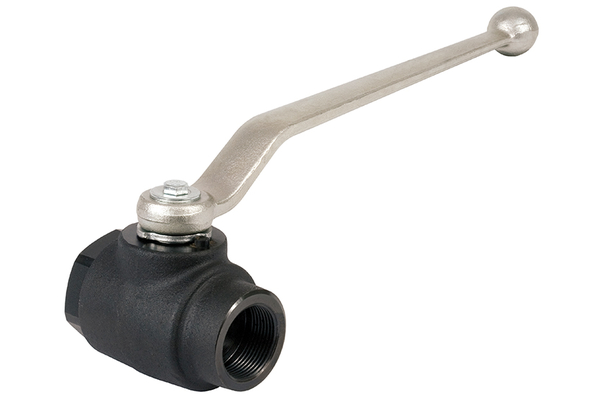

KHM-G114I-32
2-way ball valve

Product info

• Specifications

  DN:	32
  working pressure [bar]:	400
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 1.1/4

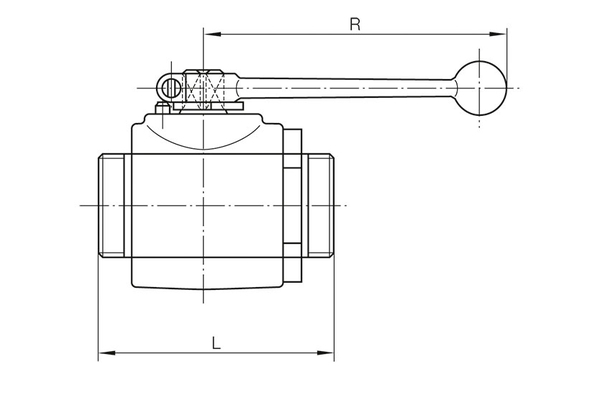

  L [mm]:	110
  Lever length [R] [mm]:	211
  B [mm]:	73
  SW [mm]:	60
  SW1 [mm]:	17
  H1 [mm]:	36,5
  H [mm]:	80
  GL [mm]:	24,0
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way socket ball cock
