| DN: | 4 |
| working pressure [bar]: | 500 |
| Thread + standard: | solderless fittings, DIN 2353, light series, ISO 8434-1 |
| Thread [GA]: | M16x1,5 |
| Pipe Ø R [mm]: | 8 |

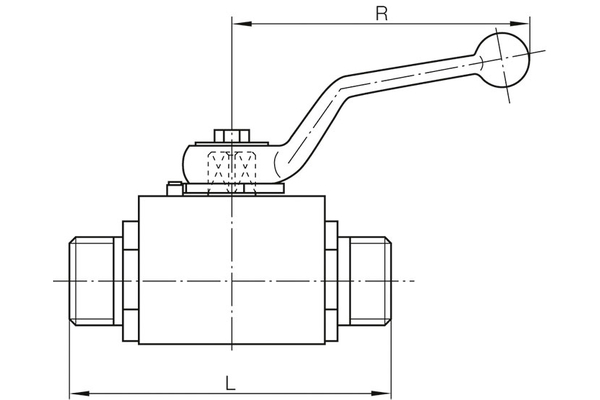

| L [mm]: | 73,0 |
| Lever length [R] [mm]: | 108,0 |
| B [mm]: | 28 |
| SW [mm]: | 22 |
| SW1 [mm]: | 9 |
| H [mm]: | 32 |
| Bore hole: | M6 |
| Material switching ball: | steel |
| Material switching ball sealing: | NBR |
| Material switching shaft: | steel |
| Material switching shaft sealing: | POM |
Reserve technical changes.
