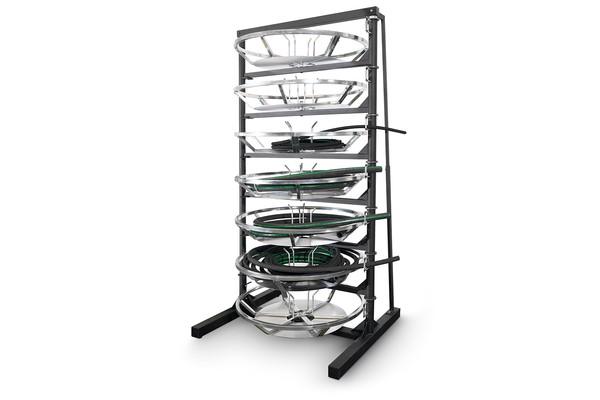

HSP7R-2
Hose reel 7x

Art. No.: HSP7R-2

List number: 37140110

Hose storage - efficient and space-saving. The HSP7R-2 is the optimal solution for space-saving storage and efficient processing of hoses. The horizontallly arranged reel plates can be swung out for easy loading.

To accessories

Product info
Benefit

Product info

Technical data

Dimensions [mm]:	1270x1000x2230
Weight [kg]:	150
Components:	User manual including assembling intsructions.
suitable for hose:	to DN31 / 1.1/4"
Max. Load per reel disc [kg]:	80
Min. inner diameter hose reel [mm]:	260
WxDxH [mm]:	1270x1000x2230
max. height of hose reel [mm]:	220
max. outer diameter hose reel [mm]:	850

Benefit

The HSP7R-2 significantly reduces the needed place for storing hose coils
Furthermore it helps to cut hose coils into pieces more efficiently
Every reel, except the bottom one, can be swung out horizontally to load a new hose coil
Because of a roll guide for each reel, there is not a big force needed for decoiling and recoiling the hose coils

Reserve technical changes.

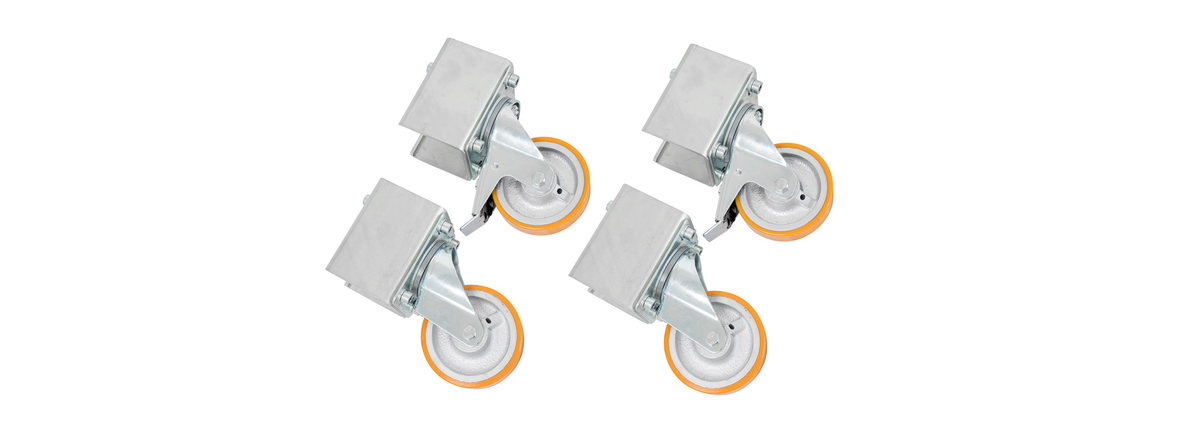

Recommended accessories:
