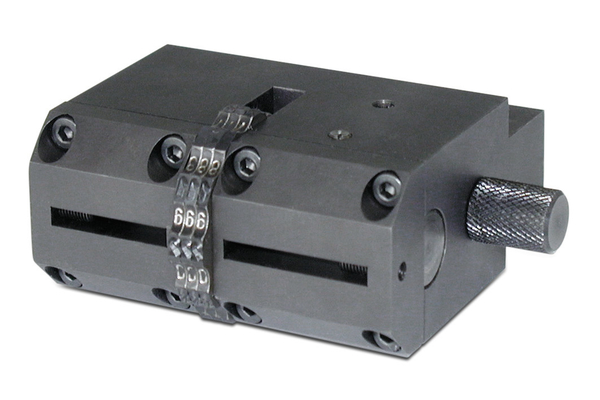

2TH48-19PW3R3 - Marking tool combination with 2 type holders and 3 pressure value marking wheels

Product info

Dimensions [mm]:	95x43,5x80
Weight [kg]:	1,6
Components:	3 pressure value marking wheels, all marking stamps - including blank stamps - for pressure[bar] and date marking. Start-up aid one-sided.

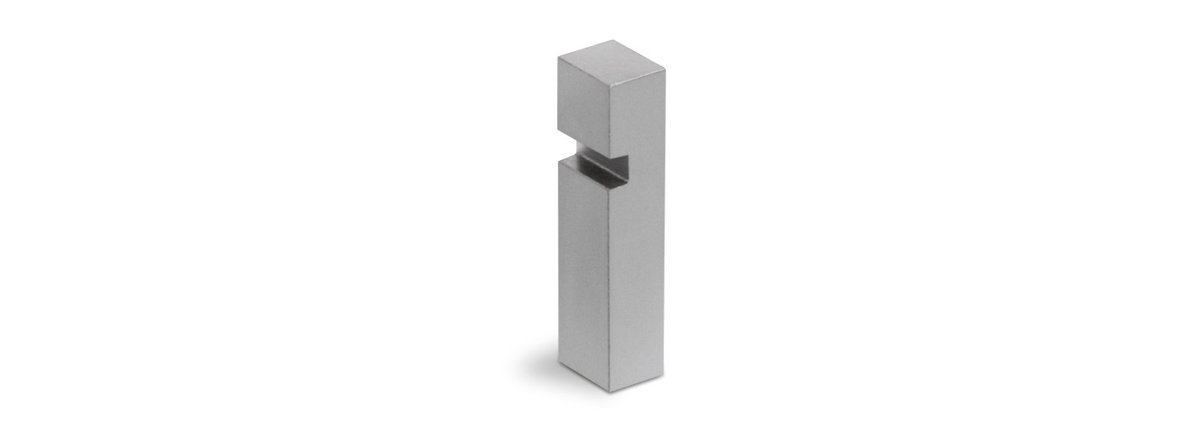

Note:	The marking stamps "ET19.." for the company name marking must be ordered additionally. The corresponding 10-digit type holder must be completely filled, if necessary with blank stamps "DIST19-..". The mounting bar for clamping this marking tool in the marking machine has a cross-section of 20x20mm and a length of 80mm.

Benefit

The pressure value marking is done with the marking wheels included in the scope of delivery
Setting/changing this value can thus be done quickly and conveniently

Practical tip

Calculation of the usable presucceeding of a version: Outside Ø x pi.
The total marking length of this marking tool is maximum 60mm if there are 10 marking stamps "ET19..." and no blank stamp in the company name type holder.

Reserve technical changes.

Recommended accessories:

2TH48-ALH

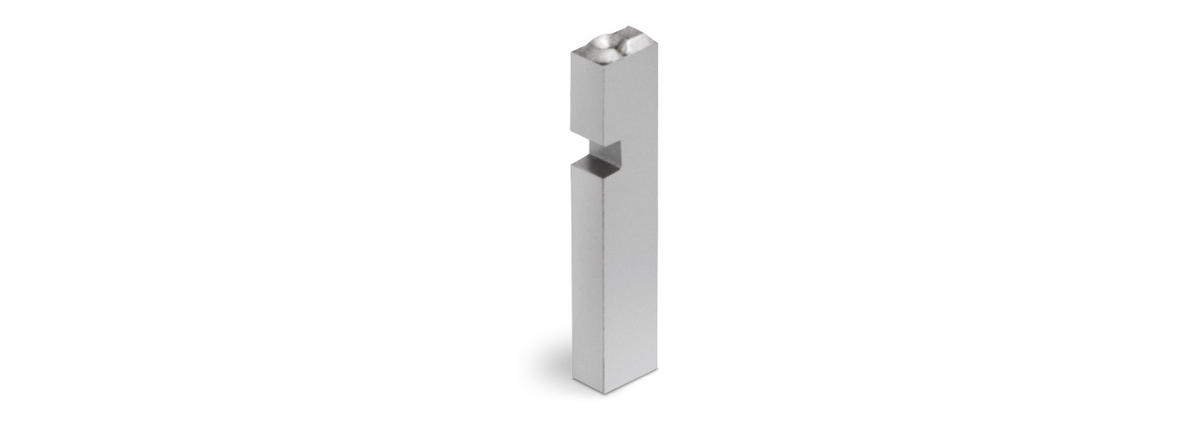

Marking stamp for marking tools of the marking machines
