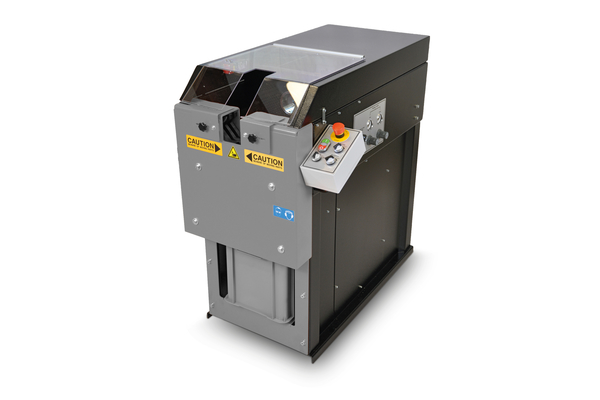

SGIAGSE5-50
Hose skiving machine for simultaneous external/internal skiving

Product info

• Specifications

  for hose-DN:	6-layer up to 51
  Dimensions [mm]:	680x1220x1080
  Weight [kg]:	150
  outer skive output:	DN 5–51 / 3/16"–2"
  power [kW]:	2 x 0,75
  Components:	german users manual, spare part list, drawer for rubber waste, foot pedal
  inside skive output:	DN 10–51 / 3/8"–2"
  Simultaneous external/internal skiving:	DN 10–51 / 3/8"–2"
  Note:	Tools for separate external skiving are optionally available from 3/16" up to 2". Tools for separate internal skiving are optionally available from 3/8" up to 2".
  Rounds per minute [U/min]:	540
  frequency [Hz]:	50
  max. hose size [DN]:	51
  number of phases:	3
  voltage [V]:	400
