VC-MANO63PH-600

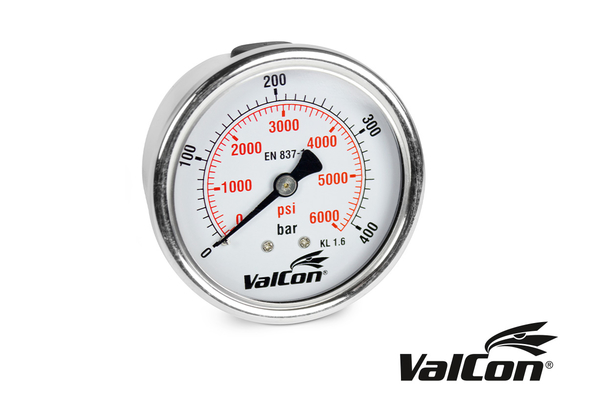

Valcon® pressure gauge NG63, connection: lower back

Product info

• Technical data

  Thread [GA]:	1/4" AG
  Pressure load [bar]:	Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
  Nominal size:	63
  Ø-casing front side [d1] [mm]:	68
  Scaling:	bar/psi
  t [mm]:	29,5
  Ø-casing backside [d2] [mm]:	62
  T [mm]:	57,5
  Description:	ValCon® Manometer
  Filling liquid [ltr]:	Glycerin 99,7%
  Material Casing:	stainless steel
  Material connection:	Brass
  Material dial:	Aluminum white, scale bar in black, psi in red, with stop pin
  Material glass:	Plastic, polycarbonate
  Material movement:	Copper alloy
  Material pointer:	Aluminum, black

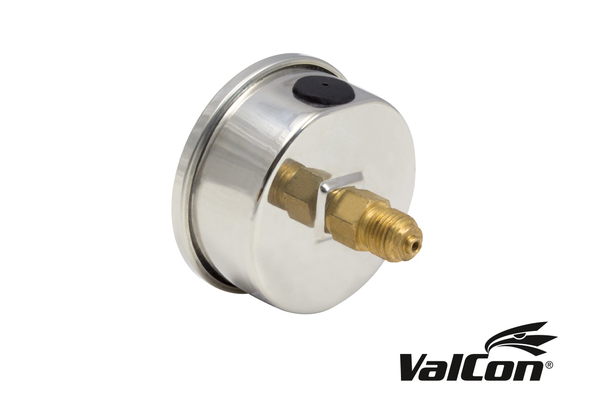

  Process connection:	lower back, centred
  Product title long:	Pressure gauges and accessories
  Temperature range [°C]:	-20°C bis +60°C
  Temperature range ambient [°C]:	-20°C to +80°C
  accuracy class:	1,6
  display area [bar]:	0 – 600
  material measuring element:	CrNi-steel 1.4571, screw shape
  protection class:	IP65 according to EN60529 / IEC 529
