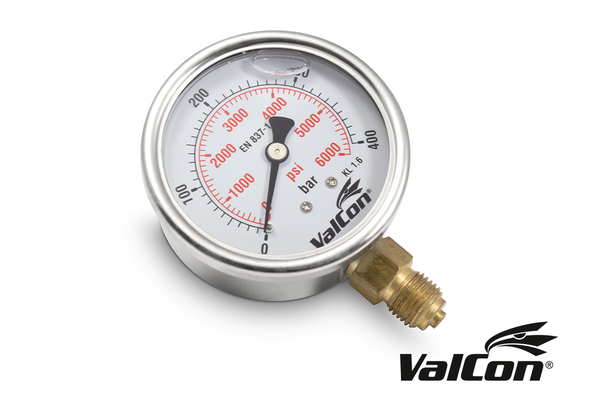

Valcon® pressure gauge NG63, connection: lower

Similar image

Pressure gauges NG63 double scale bar/psi according to EN 837-1

To accessories

Detail

Art. No.
VC-MANO63PU-10
%
SALE
VC-MANO63PU-16
%
SALE
VC-MANO63PU-25
%
SALE
VC-MANO63PU-40
%
SALE
VC-MANO63PU-60
%
SALE
VC-MANO63PU-100
%
SALE
VC-MANO63PU-160
%
SALE
VC-MANO63PU-250
%
SALE
VC-MANO63PU-400
%
SALE
VC-MANO63PU-600
%
SALE
Thread [GA]
1/4" AG
1/4" AG
1/4" AG
1/4" AG
1/4" AG
1/4" AG
1/4" AG
1/4" AG
1/4" AG
1/4" AG
Pressure load [bar]
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Nominal size
63
63
63
63
63
63
63
63
63
63
Ø-casing front side [d1] [mm]
68
68
68
68
68
68
68
68
68
68
Scaling
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
H [mm]
92
92
92
92
92
92
92
92
92
92
t [mm]
29,5
29,5
29,5
29,5
29,5
29,5
29,5
29,5
29,5
29,5
Ø-casing backside [d2] [mm]
62
62
62
62
62
62
62
62
62
62
Quantity


Product info

  • Technical data
    Description: ValCon® Manometer
    Filling liquid [ltr]: Glycerin 99,7%
    Material Casing: stainless steel
    Material connection: Brass
    Material dial: Aluminum white, scale bar in black, psi in red, with stop pin
    Material glass: Plastic, polycarbonate
    Material movement: Copper alloy
    Material pointer: Aluminum, black
    Process connection: lower
    Temperature range [°C]: -20°C bis +60°C
    Temperature range ambient [°C]: -20°C to +80°C
    accuracy class: 1,6
    display area [bar]: 0 – 60
    material measuring element: Copper alloy, screw shape
    protection class: IP65 according to EN60529 / IEC 529
