RS-CP4-38
Pipe clamps, heavy series

Product info

• Technical data

  Color:	green
  DIN:	DIN 3015-2
  Series:	CP4

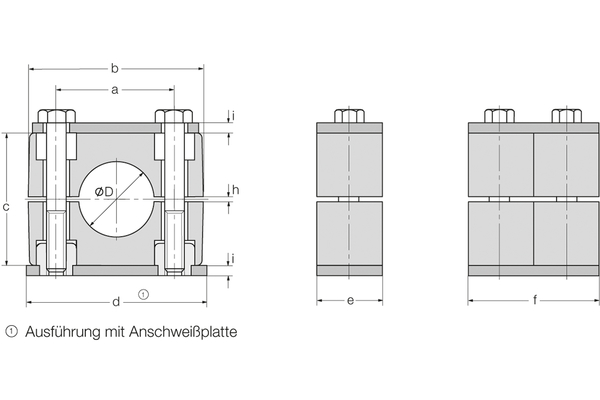

  Ø D metric [mm]:	38,0
  Ø D inch:	1 1/2
  Width b [mm]:	115
  Height c [mm]:	89
  Depth e [mm]:	45
  Twice depth f [mm]:	90
  Material:	Polypropylene
  Product title long:	Basic material for pipe clamps
  clamp half clearance [mm]:	2 up to 4
